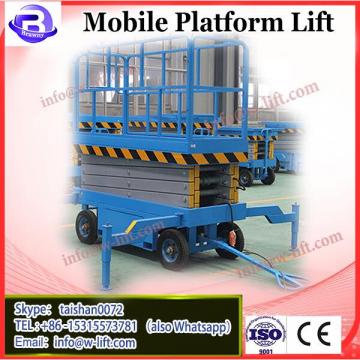

Factory lifting Equipment 8m Hydraulic Mobile Scissor Man Lift Platform building painting

Product Description

Product Application

We have had 6 series,more than 30kinds of products including 3m-16m mast aerial work platforms,4m-16m self propelled scissor lifts, 12m-26m self propelled articulating boom lifts,18m-41m self propelled telescopic boom lifts and etc.Our products are widely used in places and applications such as factory plants ,railway stations ,airports,halls,hotels,army troops,nuclear and power industry,fire fighting,stadiums,municipal administration,and etc.

	GTJZ08
capacity	320Kg
Capacity-extension deck	113Kg
Max occupancy	2
Max working height-A	10.10m
Max platform height-B	8.10m
length-C	2.42m
width-D	0.83m
Height(railings unfolded ）	2.37m
height-E（railings folded）	2.07m
Platform size（L×w-F）	2.27m×0.83m
Extension deck size -G	0.90m
Ground clearance（stowed）	0.10m
Ground clearance（elevated）	0.02m
wheelbase	1.87m
Min turning radius（inside）	0m
Min turning radius（outside）	2.25m
lifting/driving motor	24V/3.3Kw
Driving speed（stowed）	3.5km/h
Driving speed（elevated）	0.8km/h
lifting/lowering speed	28/40sec
battery	4×6V/225Ah
charger	24V/25A
Max gradeability	25%
Max tilt	3°/1.5°
tires	Φ381×127mm
Weight	2100 Kg

Main Features

1.self-propelled hydraulic powered.
2.solid non-marking tires to suit tough outdoor working conditions.
3.manual platform lowering valve in case of machine breaking down.
4.on-board diagnostic system to save time and manpower maintenance.
5.pothole guards and tilt level sensor to guarantee operators' safety.
6.emergency stop to avoid potential danger.

7.compact body and excellent mobility. .

Detailed ImagesCertificationsFAQ

Q1:What is the warranty for the aerial work platforms?
A1: For the products,we have 2 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2:How to Guarantee the qualities?
A2:most of our main components are imported from USA,Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.
Q3:If qualities problems happen, what should you do?
A3:we have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.
Q4:Will you offer operation and maintenance traninging?
A4:Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.
Q5:If I buy in large quantities, do you have any preferential policy?
A5:Yes, if buying in large quantities, we will offer finance installment service and old-for-new ones service.

Q6:Can we get support if we have our own market position?
A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to-face training and longer warranty and etc.

ExhibitionsOur CompanyPacking & Delivery

Packaging
Packaging Details	The normal package is polythene woven cloth and plywood case or according to customers’ requirements.

Delivery
Delivery Details	1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before factory delivery. 2. MOQ: 1pc 3. Warranty : 1 year for wearing parts, 3 years for stuctures,1 year for whole machine 4. Delivery Time: 7-30 days for batch goods. 5. Customers specifying freight forwarders or negotiable shipping methods!

Related Products

-Wide chassis makes the lower part of the Equipment which can bear the load balance to enhance stability.
-355/55D625 Solid Tyre, Factory lifting Equipment 8m Hydraulic Mobile Scissor Man Lift Platform building painting can keep stable not only in a variety of complex conditions but also enhance the ground friction then mobile platform lift is more stable in operation and climbing easier.
-mobile platform lift The steering system adopts double oil cylinder and Hydra steering system with 40Cr steering linkage to ensure the same direction.
-Floating leveling device will start automatically when the device encountered under the condition of uneven groundto ensure the balance of equipment Factory lifting Equipment 8m Hydraulic Mobile Scissor Man Lift Platform building painting with slope of 6 degrees then strengthen the safety and adaptability.
DFGXSDFGBA
-360°continuous rotationwith 50Cr rotary support
-Emergency safety pump. mobile platform lift The operator can use emergency safety pump to fall safelywhen the equipment is working at high altitude which can not be down.
-Constant pressure pump of Danfoss USA or Rexroth Germanit avoid oil leakage caused by gear pump damage in long -term construction
-Factory lifting Equipment 8m Hydraulic Mobile Scissor Man Lift Platform building painting of centralized electric control box is used to ensure the safety of equipment operation
-Ground control console and platform control console the former has a large screen display with self diagnostic screen without connected mobile platform lift to the computerthen customers can easily understand the calibration status of equipment and parameters which is convenient debugging and testing.
-Controller of IFM Germany can enhance system stability
-Turntable safety lockto avoid the damage in the transport mobile platform lift and maintenance of arm rotation
-Swing-out engine bracket - provide the world industry closest to the engine design easy maintenance and repairs.
-Glass fiber Factory lifting Equipment 8m Hydraulic Mobile Scissor Man Lift Platform building painting steel cover make the whole equipment nice and durable
